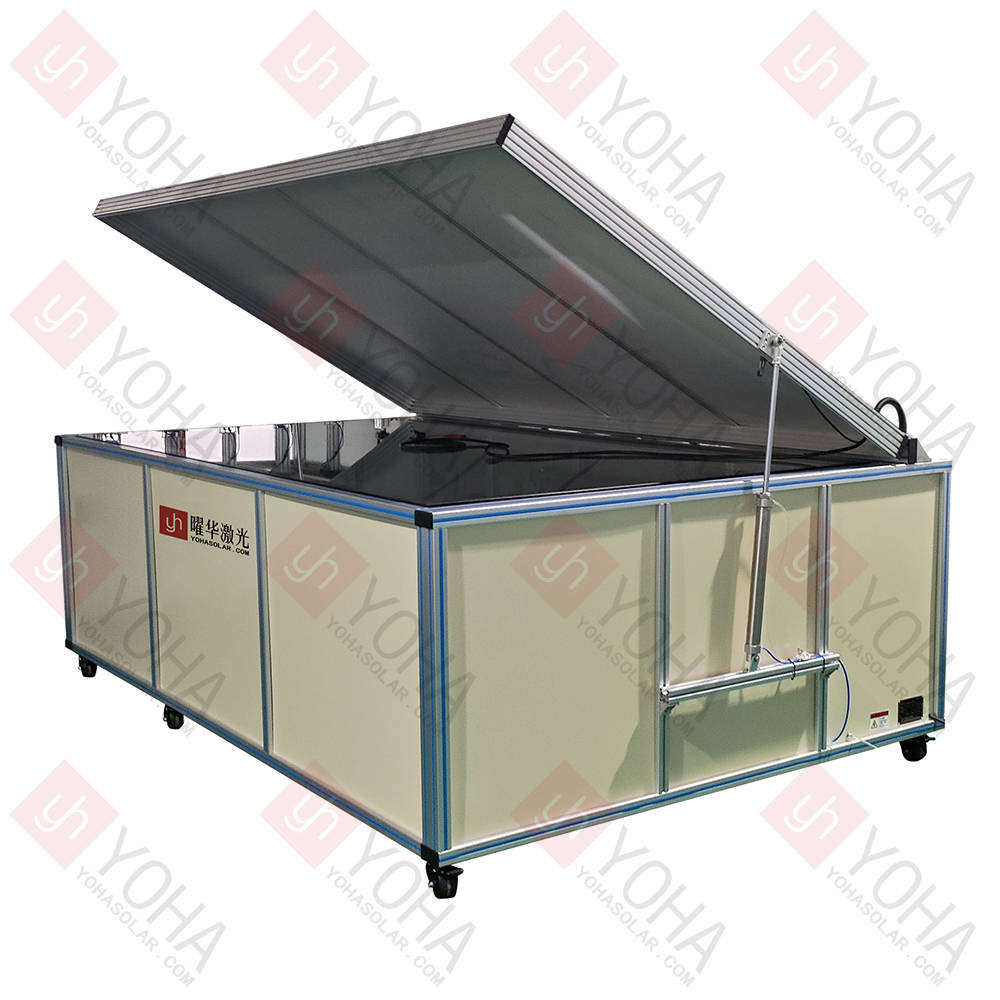

Solar Panel EL Tester

The Solar Module EL Defect Detector is a critical quality control device that utilizes the principle of electroluminescence (EL) imaging. It operates by applying an electric current to a solar cell module in a darkroom environment, causing it to emit light actively. A high-sensitivity infrared camera then captures the internal luminescent image, enabling non-contact, non-destructive automatic identification, localization, and classification of internal microscopic defects within the module (such as micro-cracks, fragments, broken grids, virtual soldering, black core cells, sintering defects, material inhomogeneity, etc.).

Product Features

• Core Technology: Electroluminescence Non-Destructive Imaging: Utilizes the electroluminescence (EL) principle to image powered solar cell modules. Clearly visualizes internal microscopic structures and defects without disassembly or contact, achieving non-destructive testing.

• High Efficiency & Precision: Automated Intelligent Recognition: Equipped with a high-sensitivity infrared camera and professional image processing software. Capable of automatically and rapidly scanning, capturing images, and intelligently identifying, locating, and classifying various complex defects (such as micro-cracks, fragments, broken grids, virtual soldering, black core cells, etc.). Significantly improves detection efficiency and accuracy, suitable for both online and offline inspection.

• High-Resolution Imaging: Precise Defect Localization: Employs a high-resolution imaging system combined with a darkroom environment design. Ensures captured EL images possess exceptional clarity and contrast, clearly revealing micron-level cracks, fine broken grids, and other subtle defects. Enables precise defect localization, providing reliable basis for quality judgment.

• Comprehensive Quality Control: Improved Yield Rate: Spans the entire process from raw material acceptance, production process monitoring, finished product inspection, to power plant operation and maintenance testing. It is a key device for ensuring the long-term reliability and power generation performance of solar modules. By detecting and eliminating defective products early, it effectively reduces production losses and enhances product yield and quality.

Technical Parameters

Product Applications

• 1. Full-Process Quality Monitoring in PV Module Production: This equipment is a core quality inspection tool on the production line, applied at critical points such as raw material (cell) incoming inspection, post-welding/layering processes, pre/post-lamination encapsulation, and final finished product shipment inspection. By detecting internal defects in real-time and non-destructively, it strictly controls quality at each stage, preventing defective products from flowing to the next process or customers, significantly improving production yield and product reliability.

• 2. PV Power Plant Component Receiving Inspection & Installation Quality Check: Used during PV power plant construction for batch sampling or full inspection of incoming solar modules to verify if internal damage like micro-cracks occurred during transportation or handling. It can also be used for re-inspection after modules are installed on racks (installation stress testing) to ensure the installation process caused no damage, laying a quality foundation for the long-term stable operation of the power plant and avoiding power generation loss or safety hazards due to hidden defects.

• 3. PV Power Plant Operation & Maintenance Fault Diagnosis & Performance Assessment: As a vital diagnostic tool for plant O&M, used for regular inspections or troubleshooting. When abnormal performance degradation (e.g., power loss, hot spots) is observed, EL testing can quickly and visually locate internal defects (such as severe micro-cracks, fragments, PID effect, cell failure, soldering failure, etc.), accurately determine the cause and severity of the fault, and guide repair or replacement decisions to maximize plant power generation revenue and asset value.

• 4. R&D & Process Improvement Support: In R&D laboratories and process improvement departments for PV modules and cells, the EL detector is a key device for evaluating the reliability of new materials, structures, and processes (e.g., novel cell technologies, different soldering/encapsulation processes). By comparing and analyzing EL images of modules under different conditions, it facilitates in-depth research into defect generation mechanisms, distribution patterns, and their impact on performance, providing strong data support for continuously improving module design, optimizing manufacturing processes, and enhancing product lifespan.

Precautions

• 1. Strict Electrical Safety Operation: The device involves applying current to modules to make them emit light. Strict adherence to electrical safety regulations is mandatory. Operators must wear insulated gloves, ensure correct and secure wiring of the module under test to avoid short circuits or electric shock risks. Always disconnect the power supply after testing before any subsequent operations (e.g., moving the module). Testing is strictly prohibited in humid environments or if the module has visible damage.

• 2. Ensure Darkroom Environment Light-Tightness: EL imaging is extremely sensitive to ambient light. Testing must be conducted in a completely light-tight darkroom or dark box. Before testing, carefully check the sealing of the darkroom door, observation window, cable entry points, etc., to eliminate any external light interference (including indicator lights, screen glow, etc.). Otherwise, image quality will be severely affected, leading to missed defects or misjudgment.

• 3. Standardized Operation & Equipment Protection: Handle the module under test gently when placing it to avoid causing new micro-cracks or damage. Exercise extreme caution when operating the high-sensitivity infrared camera to prevent lens impact. Operate strictly according to the equipment manual to avoid overload or incorrect parameter settings (e.g., current level, exposure time). Keep the equipment clean, especially the camera lens and loading platform.

• 4. Thorough Pre-Test Preparation: Ensure the module under test is at room temperature (avoid excessively high or low temperatures affecting luminescence characteristics). Check that the module surface is clean, dry, and free of large stains or water spots that could obscure the view. Precisely set detection parameters (e.g., applied current value, voltage range) according to the module specifications (power, current characteristics). Improper parameters may cause overexposure, underexposure, or failure to effectively reveal defects.

• 5. Emphasize Image Interpretation & Software Maintenance: Interpreting EL images requires professional knowledge and experience. Operators must be trained to recognize the characteristic manifestations of different defects (e.g., patterns of micro-cracks, shapes of black core cells, linear features of broken grids) and to distinguish real defects from image artifacts (e.g., noise, interference fringes). Regularly calibrate the equipment and update the image analysis software to ensure detection algorithms and defect recognition libraries remain current, improving judgment accuracy.

• 6. Regular Maintenance & Professional Servicing: Establish and execute a regular equipment maintenance plan. This includes cleaning optical components (lenses, filters), checking electrical connection reliability, and calibrating light sources and camera parameters. For in-depth maintenance or repair of critical components (e.g., infrared camera, power modules), engage the equipment supplier or professional technicians to avoid damage or performance degradation from self-disassembly.
